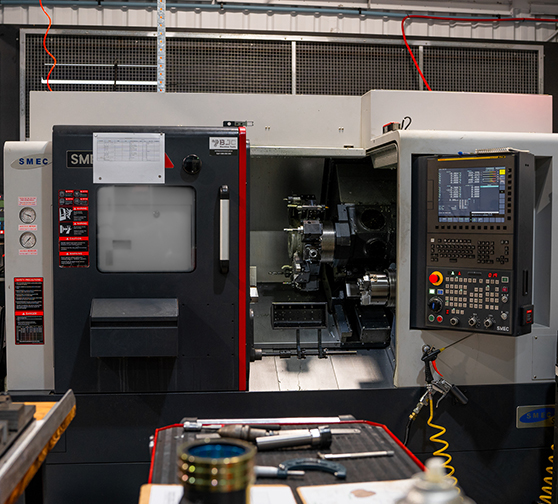

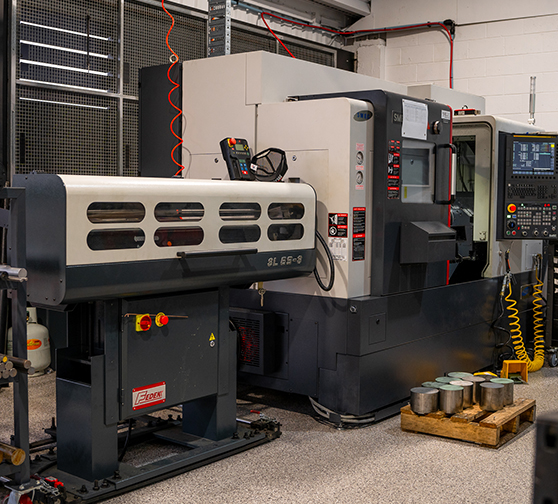

Automated Horizontal Turning Centre
Machine Information
In this current market automation and efficiency is key, and with our SMEC SL-2000BSY this ticks both boxes with ease.
With its barfed capacity, Y-Axis and Sub-Spindle this workhorse is the ideal Lights-Out Production BEAST!
Standardised tooling, highly efficient on board as well as CAM driven programming makes for high speed setup and reduced cycle times which results to more money in the clients pocket!

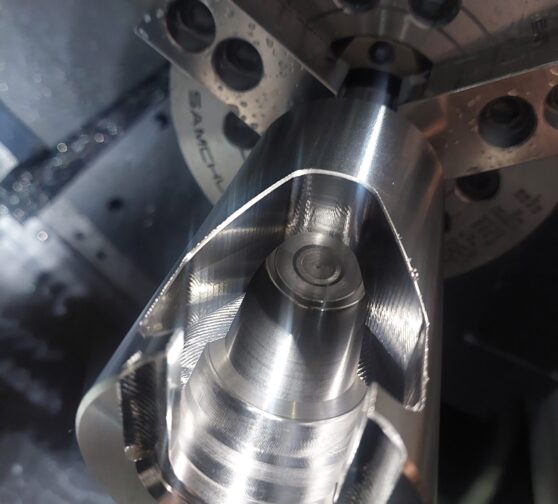

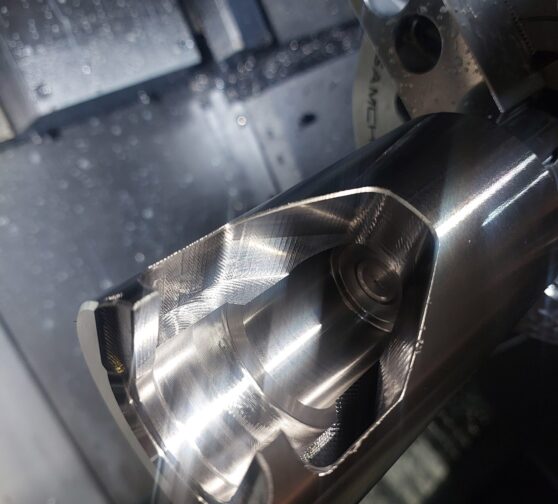

From basic industrial to high-complex automative and aerospace parts, this machine breezes through them all.
Machine Spec

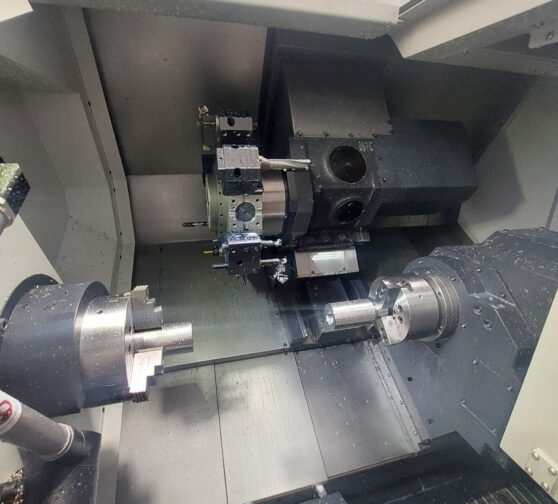

- Y-Axis Sub Spindle Lathe

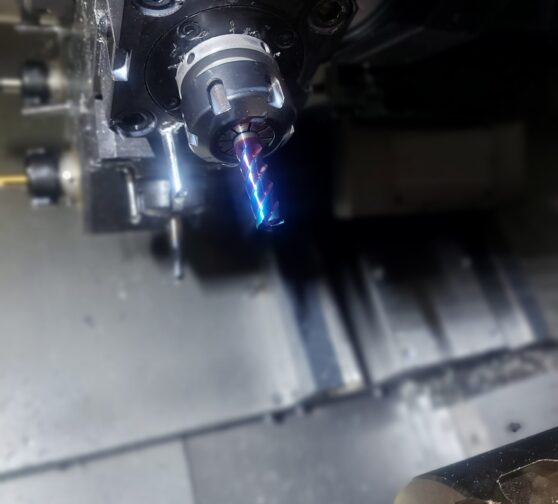

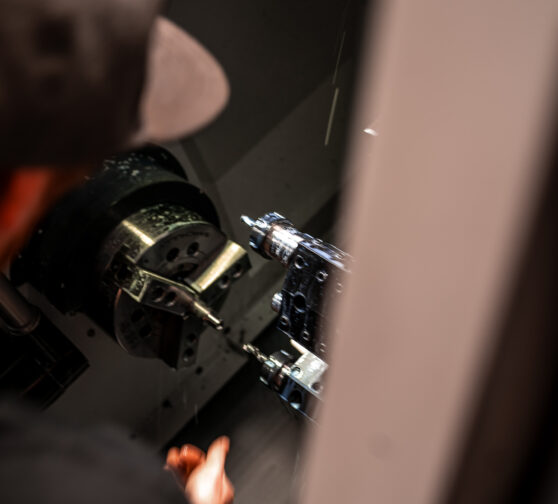

- Full Radial & Axial Live Tools
- Fully Automated BarFeed System
- Lights Out Manufacturing
- Fanuc 0iTF Controller With Conversational & CAM Driven Programming
- 68mm Spindle Bore
- Max Turning Ø395mm
- Max Turning Length 450mm
- Headstock design for easy heat dissipation
- One piece rigid design with 45° torque tube bed
- Anti-oil-leakage of lubrication monitoring system
- Hydraulic oil pressure detection device
- All box ways construction with great machine rigidity
- Hand scrapped and low-friction pad on bearing surface
- 12/24 position BMT55 turret with fast indexing
- Sub-spindle with full “C2” axis
- Clear machining room ensure easy chip cleaning
- CE declaration of conformity for EU countries
| Category | SL-2000BSY |
|---|---|
| Swing over bed | 650mm |
| Max Turning length | 450mm |
| Chuck size (main/sub) | 8″ / 8″ 6″ |
| Spindle bore mm | 76mm |
| Main spindle speed RPM | 4,500 / 4,500 |
| Sub-spindle speed RPM | 4,500 / 4,500 / 6,000 |
| Main spindle motor (cont/max) kw | 11/18.5kw |
| Sub-spindle motor (cont/max) kw | 5.5/7.5kw |
| Travels X/Y/Z/ZB mm | 235/105/590/580 |
| No of tool positions | 12/24 BMT-55 |
| Controller | Fanuc OiTF Plus |
